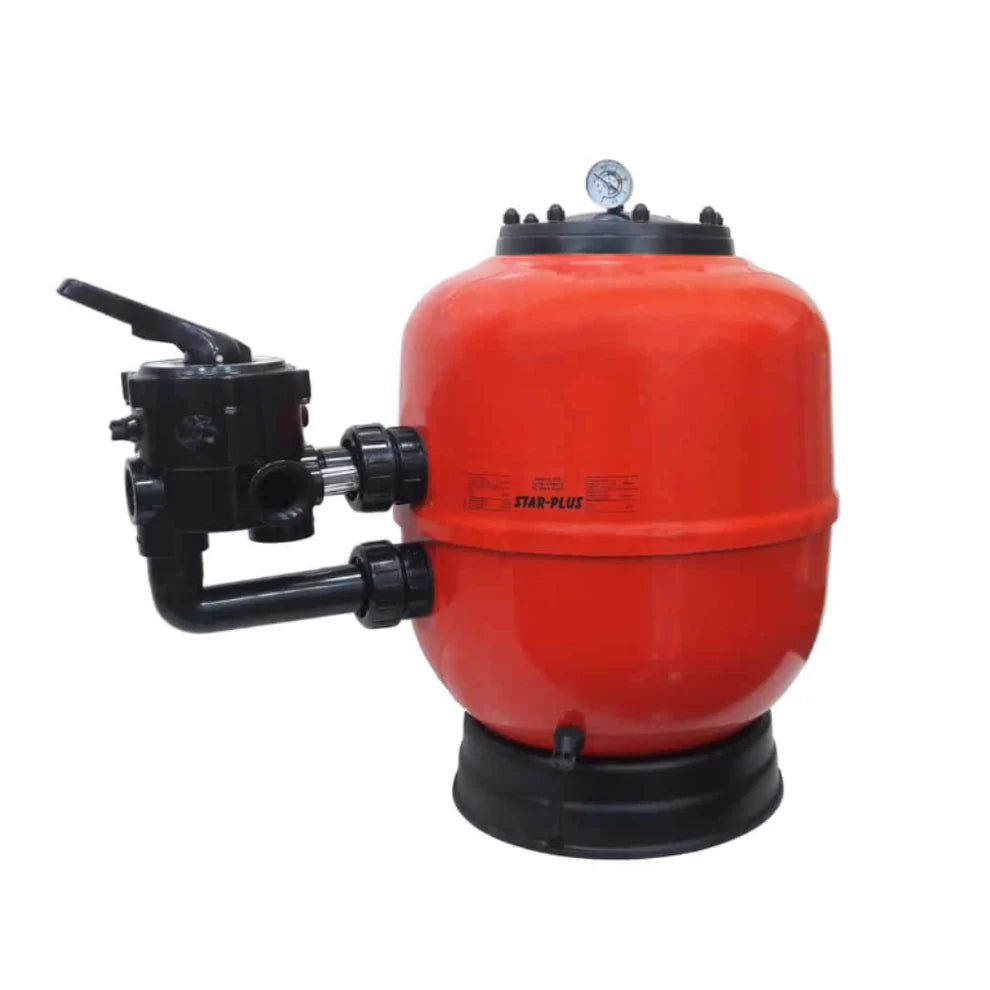

STAR PLUS D.600 FILTER WITH SELECTOR VALVE 00599

Star Plus D 600 filter with selector valve 00599

Characteristics:

• Constructed with polyester resins.
• Excellent finish.
• Assembled with collector and diffuser made of unalterable plastic material.
• Equipped with pressure gauge, manual water purge, automatic and manual air purge.
• Connections for six-way selector valve, with filtration, washing, rinsing, recirculation, draining and closed operations.
• Maximum working pressure: 2.5 Kg/cm2.
• All equipped with a selector valve with screws.

Technical specifications:

• Diameter 600 mm.
• Height 805 mm.
• Filtration surface: 0.28 m2.
• Flow at speed 50 m3 m2: 15,000.
• Silex load: 125 kg.
• BIOMA HI-TECH glass load: 100 kg.
• Selector valve: 1 1/2".
